Headlight IOWA
HIGHSIDER headlight IOWA

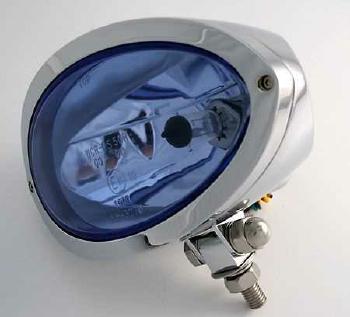

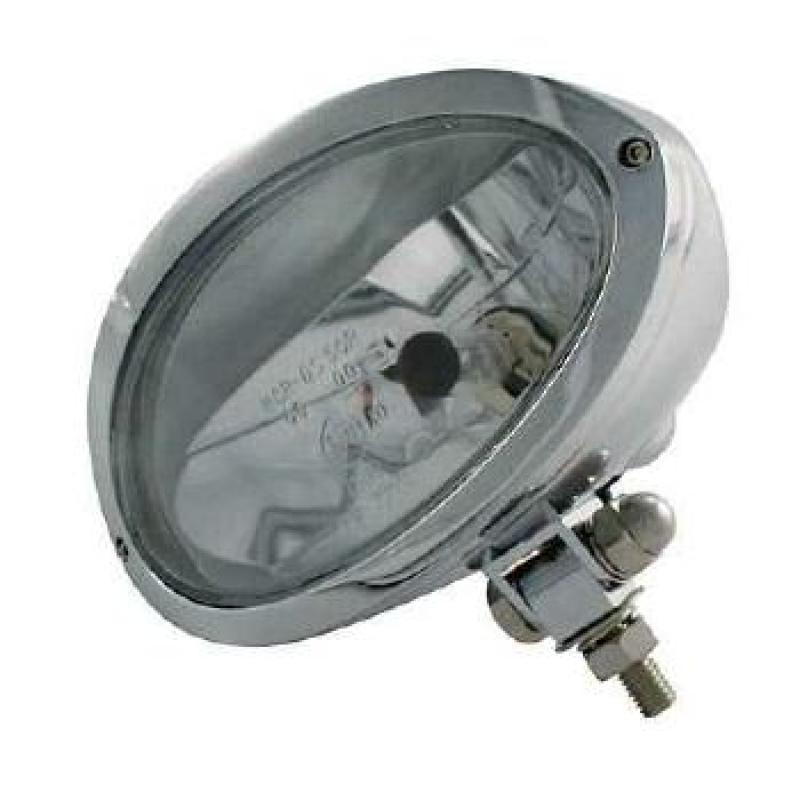

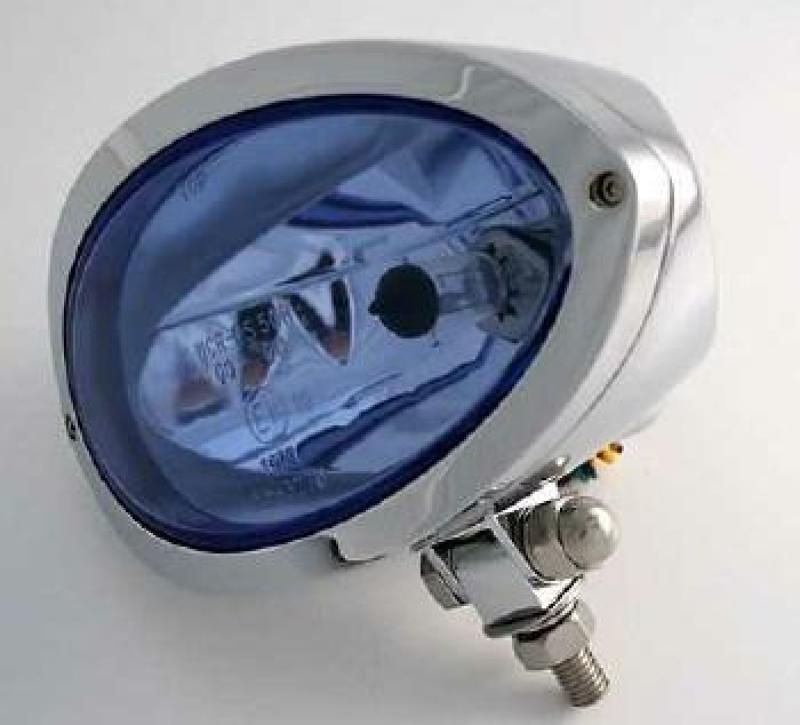

H4 halogen main headlight inclusive parking light in a chrome-plated, oval metal housing and clear lens for bottom mount. The headlight is equipped with a symmetric reflector, which emits a bright light for a good visibility, E-marked.
Spectacular – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!
Specifications
Illuminant: H4, 12 V 60/55 W
Width: 175 mm
Height: 102 mm
Depth: 132 mm
Bottom mount, with socket screws, M3 x 0,5 mm, length: 15 mm, (real thread length: 12 mm), head-diameter of socket screw : 5 mm.
Cable assignment headlight
Black = ground
Yellow = low beam
Blue = high beam
Cable assignment parking light
Black = ground
Green = plus
Delivery content: 1 Pcs.
Optionally available
Spare frame, chrome: Item No. 223-060R
Spare reflector, symmetric, H4 clear lens: Item No. 226-191
Spare rubber seal: Item No. 223-061
Spare bulb H4: Item No. 209-105 H4
