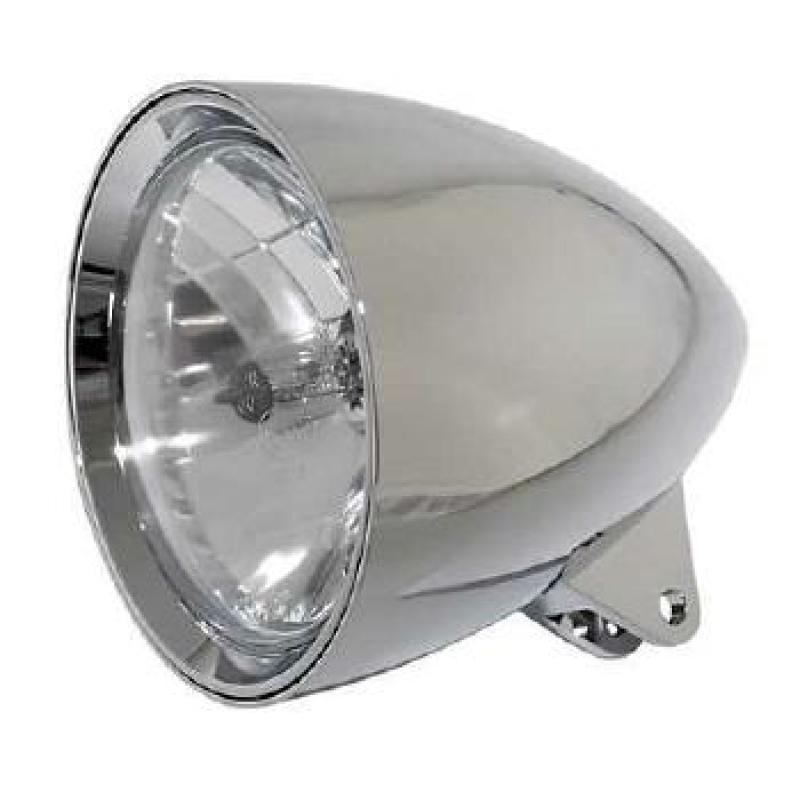

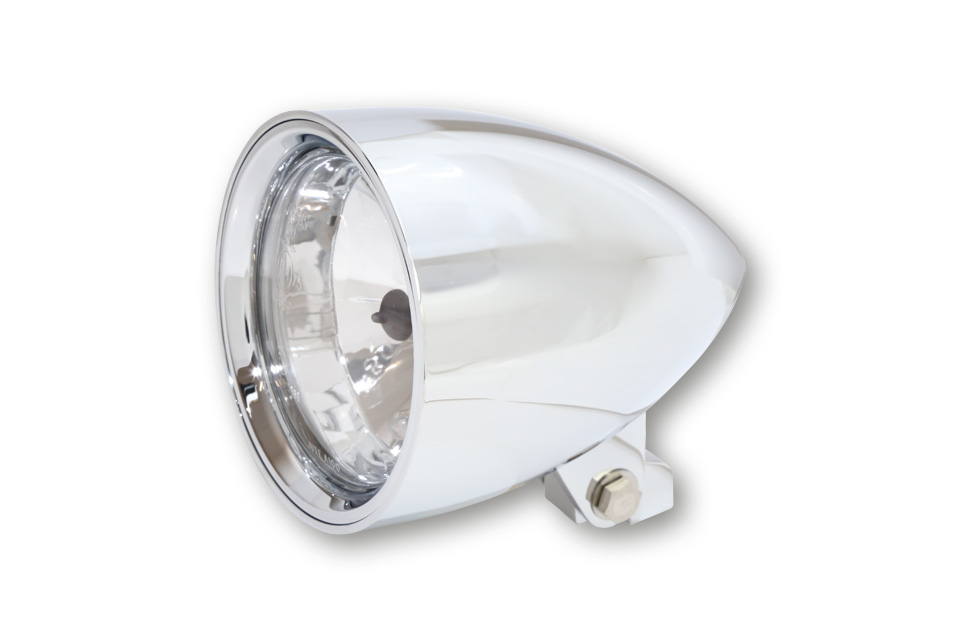

HIGHSIDER 4 1/2 inch main lamp CLASSIC 3
HS1 halogen main headlight with parking light and a high-quality, chrome-plated metal housing for bottom mount. The headlight is equipped with a symmetric reflector, which emits a bright light for a good visibility, E-marked.
Spectacular – give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!
Specifications
Illuminant: HS1, 12 V 35/35 W
Bottom mount
Diameter: 157 mm
Depth: 195 mm
Bracket from mid-fixing screw to housing rear: 127 mm
Distance bracket in between: 18 mm
Cable assignment
White = low beam
Green = ground HS1 bulb
Blue = high beam
Red / black = parking light
Black = ground parking light
Delivery content: 1 Pcs. inclusive illuminant
Note: symmetric reflector - approved only for R/L-hand driving.
Optionally available
Spare reflector: Item No. 226-097
